Inverse Kinematics

Second assignment: Inverse Kinematics

This assignment is not presented to a TA, you need to submit it to Kattis.

Video of the Introductory Presentation. Be aware that the deadline is 17:00 September 13th for bonus points.

In this assignment you will program the inverse kinematic (IK) algorithm for a robot, which will move its joints so that it follows a desired path with the end-effector.

It is composed of two parts:

A 3 DOF SCARA robot, with an inverse kinematic solution that is possible in analytic form. Solving this part is the minimum requirement to pass the assignment, and get an E grade. Kattis will give you a score of 20 or above if this part is solved.
A 7 DOF KUKA robot, with the inverse kinematic solution to be implemented with iterative algorithms. Solving this part is required for a C grade (the best grade possible for this assignment). Kattis will give you a score of 22 if both parts are solved.

Download the file Assignment_2_kinematics.zip from here and decompress it. Put the ROS package in your ROS workspace and run catkin_make. Remember to source the devel/setup.bash file if needed.

The python file:

kinematics_assignment_metapackage/kinematics_assignment/scripts/IK_functions.py

is the file you have to modify and submit to pass the assignment (here Links to an external site.). This file contains two functions, one per robot.

PART 1: SCARA ROBOT

To visualize the robot, run:

roslaunch kinematics_assignment scara_launch.launch

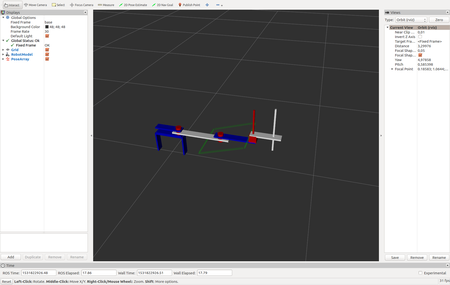

An rviz window will open:

This allows you to visualize the robot and verify that it moves correctly along the desired path once you have implemented the IK solution.

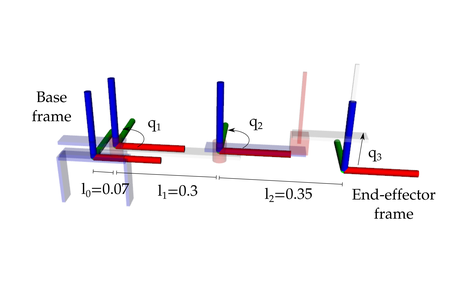

The following image shows the distances between the joints and the end-effector frame, in the robot's zero configuration. Two joints (q1 and q2) are revolute, and one (q3) is prismatic. Notice that the end-effector frame and the base frame are at the same height, which means that the end-effector z coordinate coincides with the value of the last prismatic joint (q3).

Your task is to fill the function scara_IK in the IK_functions.py file so that it returns the correct joint values to follow the given path. More specifically, this function receives as input the desired point = (x, y, z), and outputs the corresponding joint values q = (q1, q2, q3).

At the beginning, this function always returns zero values for the joints, so the robot will not move. Once you have obtained an analytical solution for the inverse kinematics, you can check if the robot correctly follows the desired path. To do so, you can relaunch the scara_launch.launch file or, if it is already running, you can restart the path following by calling: rosservice call /restart.

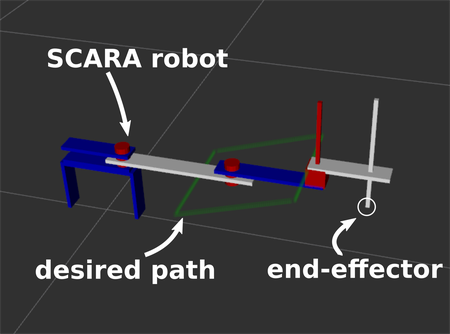

The robot's joints will start moving according to the solution you provide, and you should see something like this:

Since there is more than one possible solution for this IK problem, the motion of your robot could look different. The important aspect is that the end-effector is following the desired path.

PART 2: KUKA ROBOT

To visualize the robot, run:

roslaunch kinematics_assignment kuka_launch.launch

An rviz window will open:

This robot has a kinematics structure much more complex than the SCARA, therefore it is not feasible to obtain an analytic solution for the inverse kinematics problem.

Your task is to fill the function kuka_IK in the IK_functions.py file so that it returns correct joint values. The inputs to this function are:

point = (x, y, z), the desired position of the end-effector.
R = 3x3 rotation matrix, the desired orientation of the end-effector.
joint_positions = (q1, q2, q3, q4, q5, q5, q7) the current joint positions.

The output of this function is a vector q containing the 7 joint values that give the desired pose of the end-effector.

At the beginning, this function always outputs the inputted joint positions, so the robot does not move.

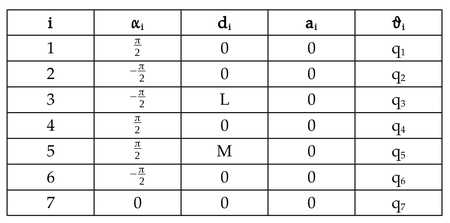

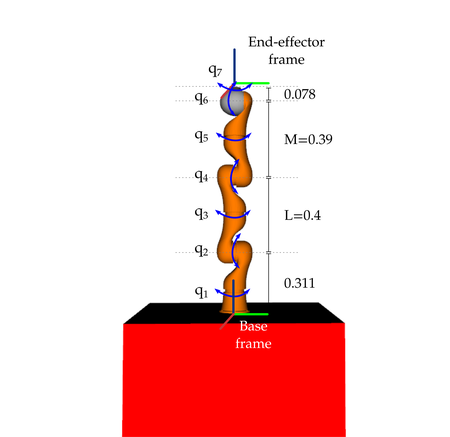

To help you write the IK algorithm, this is the DH table of the KUKA robot, with the depicted frames:

The DH table follows this convention:

$a_{i}$ $a_i$ distance between $z_{i - 1}$ $z_{i-1}$ and $z_{i}$ $z_i$ along the axis $x_{i}$ $x_i$
$α_{i}$ $\alpha_i$ angle between $z_{i - 1}$ $z_{i-1}$ and $z_{i}$ $z_i$ about the axis $x_{i}$ $x_i$
$d_{i}$ $d_i$ distance between $x_{i - 1}$ $x_{i-1}$ and $x_{i}$ $x_i$ along the axis $z_{i - 1}$ $z_{i-1}$
$θ_{i}$ $\theta_i$ angle between $x_{i - 1}$ $x_{i-1}$ and $x_{i}$ $x_i$ about the axis $z_{i - 1}$ $z_{i-1}$

The frame transformation can be found as:

$^{i - 1} T_{i} = T r a n s (z_{i - 1}, d_{i}) R o t (z_{i - 1}, θ_{i}) T r a n s (x_{i}, a_{i}) R o t (x_{i}, α_{i})$ $^{i-1}T_i=\:Trans\left(z_{i-1},\:d_i\right)Rot\left(z_{i-1},\:\theta_i\right)Trans\left(x_i,\:a_i\right)Rot\left(x_i,\:\alpha_i\right)$

For a solution to compute the robot's Jacobian, you can check the section "Jacobian computation" at page 111 in this book Links to an external site..

Once you have implemented an IK solution, you can test it by relaunching the kuka_launch.launch file or, if it is already running, by calling

rosservice call /restart.

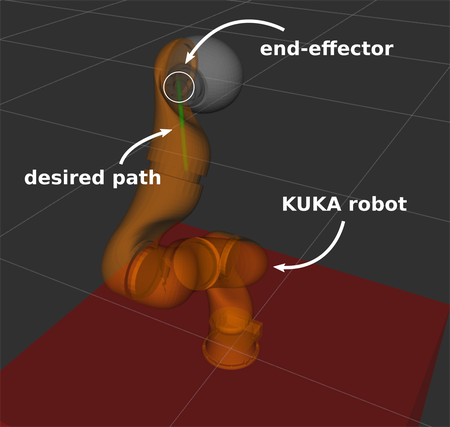

The robot should move down and up along the path, keeping a constant orientation, similarly to this:

FAQ:

1. One of the most common questions we get for this assignment is regarding the threshold for the KUKA part. Students often find that if they set the tolerance threshold for when to break the loop in the numerical IK too small, they get a time out, and when they set it too high, the error is too large. For all cases we have examined, this has never been caused by the range of acceptable values for the threshold being small. In all cases it has been caused by the implementation of the algorithm being incorrect, so that it doesn't converge. Thus, with a small threshold, the loop never exits, and with a large threshold, the loop never starts, as the initial error is already smaller than the threshold.

2. If the robot model does not appear on rviz try adding this line to your bashrc and source it again.

echo 'export LC_NUMERIC="en_US.UTF-8"' >>~/.bashrc

source ~/.bashrc

3. Different values/python methods/libraries/equations work for me and my classmates, is there something wrong? Not at all. It really depends on your individual implementation and that is why it is difficult for us to tell exactly why you may be exceeding the time limit or not getting all the points. We have seen every imaginable combination work.

4. My robot is flailing like crazy all over the place. Check you can follow positions first, then debug orientations.

5. Kattis tells me my solution is "Accepted", and that my score is 10. Does this mean I passed the E level? No. Kattis telling you that your solution is "Accepted" just means that it your code didn't crash or time out. The requirement for passing (E grade) is at least 20 points, and the requirement for C is to have 22 points. Thus, a score of 0, 1, 2, or 10 means that you did not yet pass. A score of 20 or 21 means that you passed the E level.

6. I keep getting runtime errors and do not know why. Kattis only provides the basic python libraries + numpy (choose "Python with NumPy" as the language of your submission) as the only external library. If you keep getting "Runtime Error", submit the empty skeleton with only the include statements to see if the library is available. The problems are all solvable with the standard libraries + numpy.
